160UPS / v2 Manual
V2 Specifications
On average, battery runs Auto CPAPs 8 to 10 hours
(average pressure 4-15cmH2O, standard tube & passover humidifier)
On average, battery runs BiPAPs 7 to 9 hours
(average pressure 10/15cmH2O, standard tube & passover humidifier)

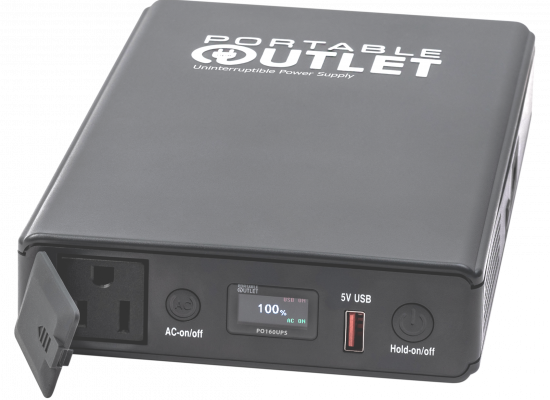

159 Watt, 110 Volt UPS and CPAP Battery
· 159Wh provides longer run time for ResMed AirSense 10 & 11 models
· Works with the most popular models of CPAP & BiPAP
· Does not require additional adapters or connectors
· Power a CPAP and USB device at the same time
· Pure Sine Wave Technology adds battery life
· Meets TSA & FAA requirements for air travel
· Color Display & Power Percentage Indicator
· Can power laptops and other electronics
· Fast Charging USB (Output 5V/3.0 A)
· Includes a thin, universal wall cord
· Includes a soft, durable travel bag
· 1 year warranty
– Travel CPAPs typically get 50% more battery life.
– Heated Humidification at maximum settings can reduce battery life by 40% to 60%.
– Using both Heated Tubing and Heated Humidification at the maximum settings can reduce battery life by 60% to 75%.
– Mask leaks significantly reduces battery life.
– Maximize battery life by turning OFF your heated tube, turning OFF your heated humidifier and replace leaking CPAP masks.
SPECIFICATIONS:
Battery Capacity: 159 Wh/14.4Ah
AC Input: 100-240V/50-60Hz
DC Input: 12-19V, 2-3.2A
AC Output: 110V/60Hz (will match AC input)
USB DC Output: 5V, 3.0A
Rated/Peak Power Output: 100W/145W
Battery Recharging Time: Approx. 5 to 6 Hours
Operating Temperature: 40°F and 105°F
Weight: 2lbs, 14ozs
Dimensions: 5.375” x 9” x 1.5”
